The impalpable
sound
Don't just listen
to the music,
feel it.
EMOTIONAL
TRAVEL
A sound is an invitation to dream and to imagine.
We feel it, we hear it, but we never fully perceive it. It is fragile, ephemeral, and almost impalpable.
SYLPH® is more than a speaker.
It is not a performance or an ostentatious object.
It is a new sound experience.
SYLPH® frees itself from the codes conveyed by loudspeaker brands and proposes to play and express its own personality by offering another dimension of sound. Sylph® sound is above all what you make of it and what it will awaken and reveal in you. It is to express your singularity, your creativity, it is to embody a form of freedom.
The very relaxing enveloping sensation generated by our product creates an immersive and inspiring sound environment, a real emotional journey
YOUR MATERIALS
COME TO LIFE

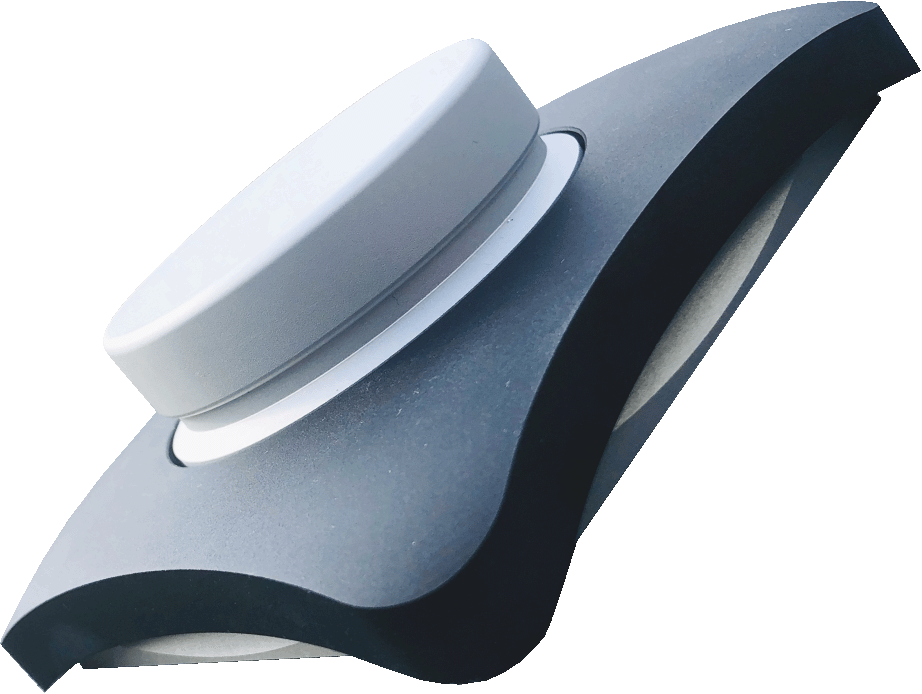

SYLPH® is a membrane-free loudspeaker that transfers sound waves into the material on which it is placed, thus bringing various surfaces to life.
Walls, materials or furniture in your environment are thus transformed into a high quality loudspeaker, your interior becomes a speaker generating emotions.
A clever combination of design, electromagnetism and aluminium, SYLPH® technology alone represents a complex technological challenge, the result of more than 2 years of R&D to find the perfect balance between all these elements.
Today, this revolutionary technology is patented worldwide.
Imagination
INVIOLABLE
Unlike traditional Bluetooth speakers, our solution is tamper-proof, and therefore permanent, ideal for integration in a hotel environment.
Immersion
Sylph offers an immersive listening solution without the discomfort of wearing headphones.
INDOOR / OUTDOOR
Walls, furniture, partitions, any surface, inside or outside, can become a sounding board. Terrace, swimming pool, garden, ... no limits.
ADAPTABILITY
The power of Sylph is what you make of it.
Your environment will become its own, your materials will be its medium of expression.
CONNECTIVITY
Control your speaker directly from your smartphone thanks to Bluetooth.
Installation
Easy to install on any surface.
It's up to you.
SOUND CIRCULATION
Thanks to the vibrations emitted by Sylph, the entire surface transmits sound for an exceptional enveloping sensation.
SENSORIALITY
The sound experience comes to life around you, you enter a new acoustic dimension.
without limits
Visible or invisible,
you
decide
FEEL THE SOUND
SYLPH®, more than a loudspeaker, a unique acoustic experience
The degree of precision in the machining of mechanical parts is more or less 2 hundredths of a millimetre, which is why the choice of materials is a determining factor in the SYLPH experience, as it is in all our product developments.
The impedance of our loudspeakers is 8 ohms in order to obtain a precise and warm audio rendering (very high-end loudspeakers have a minimum impedance of 8 ohms). However, the quality of the sound file remains the key to an optimal experience.
LIKE A CARESS
THAT ENVELOPS YOU
The non-directive acoustic experience allows the “brain” to let go
and no longer make the invisible link with the acoustic source.
INSTALLATION GUIDE
Click here for technical information
Click here for technical information
quick & easy
installation
Atman guides you step by step
for an optimal installation
of the SYLPH technology.
GENERAL
technical
information
CHARACTERISTICS
- Musical power : 50W
- Impedance: 8 Ohms
- Frequencies: 40Hz to 18KHz
- Audio cable length: 1.5m (2 x 0.75mm² / copper)
- Double-sided tape (high resistance – 3M VHB 4941)
- Mounting holes (M5 screws)
- Dimensions : 10,70 x 10,70 x 4,30mm
- Weight: 0.800 Kg
- Main material : Aluminium
- IP37
- CE Standard
- 5 years warranty
2 POSSIBILITIES
Sylph with top mounting holes
for more convenience
Sylph without top mounting holes
for a clean design
fiXATION
3 FIXING SYSTEMS
Sylph is fully adaptable to all installation problems.
Visible or invisible, depending on the intended purpose, choose the appropriate fixing method.
ATTENTION: Only the ATMS1H reference has the fixing holes adapted to method 3 (the screws are not supplied as they must be adapted to the fixing surface).
If you choose to screw the loudspeaker in place and it is not going to be moved, we recommend gluing it with the double-sided tape. This will improve the sound transmission on the broadcast surface.
METHOD 1
GLUING THE LOUDSPEAKER
All speakers are equipped with a very strong and durable double-sided tape.
METHOD 2
SCREW THE LOUDSPEAKER ON FROM THE BACK
The loudspeaker can be screwed to the back of the support surface with M5 screws.
METHOD 3
SCREWING THE LOUDSPEAKER IN FROM THE FRONT
The speaker can also be screwed in from the top of the black cover.
LENGTH
OF CABLE
2 OPTIONS
Sylph comes standard with a 1.5m cable (2×0.75mm² audio cable). It is possible to extend this cable for your installations:
Under 15 metres in length, you can use a 2×0.75mm² cable
Above 15 metres in length, we recommend using a 2×1.5mm² cable to avoid losses
TIP: Do not extend cables longer than 50m as this may degrade the quality of the sound.
OPTION 1
for a length of less than 15m
It is necessary to use an extension cable
2 x 0.75 mm² extension cable
OPTION 2
for a length of more than 15m
It is necessary to use a 2 x 1.5 mm² extension cable
INSTALLATION
sound diffusion surface
The panels must have the ability to vibrate, regardless of the material they are made of (for example, a concrete wall will not transmit sound). There is a relationship between the size of the panel and its thickness; a panel that is too thick and small or too large and thin will not perform well. This ratio is quite large, there are many possibilities.
The type of material also has an impact on the sound characteristics (clarity, precision, volume level).
Metals, wood, plasterboard, glass, plastics, etc. do not behave in the same way and therefore do not sound the same.
Furthermore, the way the panel is fixed has an influence, whether the panel is free or constrained.
In any case, the best sound is the one you like!
TIP: For each installation, we advise you to always test several positions in order to find the best sound before fixing the speakers.
POSITION
HIGH SPEAKER
BASIC CONCEPTS
The position of Sylph loudspeakers on the broadcast surface is very important, there are no sacred rules, it depends on the environment. The following diagrams illustrate two basic principles that generally give good results.
TIP: If your installation has several independent panels, prefer to use one speaker per panel.
AMPLIFIER CONNECTION
CONNECT 4 SPEAKERS TO ONE AMPLIFIER
It is possible to connect 4 speakers to one amplifier.
The power output for each speaker will be slightly lower. This type of installation can be interesting in the case of a large surface (40 to 70m2), in order to balance the sound sources.
TIP: This amp was originally designed to accommodate 2 speakers. Installing 4 speakers requires more power on each output of the amp. We therefore recommend that you do not push the volume beyond 3/4 to avoid the amp going into safety protection.
CONNECT
DOLBY SURROUND
CONNECT SYLPH TO AN AMP
DOLBY SURROUND AMPLIFIER
You can install the SYLPH speakers on a multi-output audio amplifier, usually used to connect several speakers (5.1, 7.1, etc…). It is then possible to mix conventional speakers with SYLPH speakers.
Be careful, however, to respect the power and impedance characteristics of the speakers.
TIP:
- Each audio output should have a power of about 60 Watts
- The output impedance of the amplifier must be 6 to 8 Ohms
WARNING: ATMAN Manufacture will not take in guarantee the problems linked to an over-powering of the speakers
TELEVISION CONNECTION
The ATM-BT60Y amplifier can be connected to a television in analogue via the RCA audio input or via bluetooth.
THE EXPERIENCE
OF A UNIQUE SOUND
SYLPH® generates a harmonious
listening comfort.
Every surface or wall becomes a possible support for vibration. Your only limit is your imagination because SYLPH® is first and foremost what you make of it.
Hidden under a kitchen worktop, a dressing room, a floor, a partition, or a sanitary equipment (bathtub, shower screen, mirror…), our SYLPH® technology creates a highly distributed acoustic atmosphere that envelops the area concerned.
Bringing life
to your
interior
Window and veranda
Applied to a glass surface Sylph will diffuse music inside and outside.
Bedroom or terrace
Integrated into a bed headboard, or under your terrace, Sylph accompanies you everywhere.
Floor and ceiling
If your floor or ceiling is capable of vibrating, Sylph will turn it into a giant membrane playing 360° music
Partition
Wood, plasterboard, integrate a vibrating, immersive and invisible sound system.
Furniture
TV cabinet, chest of drawers, cupboard, Sylph can transform your furniture into a loudspeaker integrated in your interior.
Kitchen
Worktop, wall, cabinet, Sylph can be integrated invisibly into your kitchen.
Bathroom
In the ceiling, in the walls, on the shower wall, and why not in the mirror...
In every place
is created a
NEW
EXPERIENCE
SOUND
Hotels, restaurants, campers, boats, mobile homes, tiny houses, but also wellness centres or medical practices, SYLPH technology can be integrated wherever you want to offer an enriched experience.
Sylph inside
SYLPH is above all
what you do with it
The SYLPH technology is now being used
in a number of increasingly daring projects.
